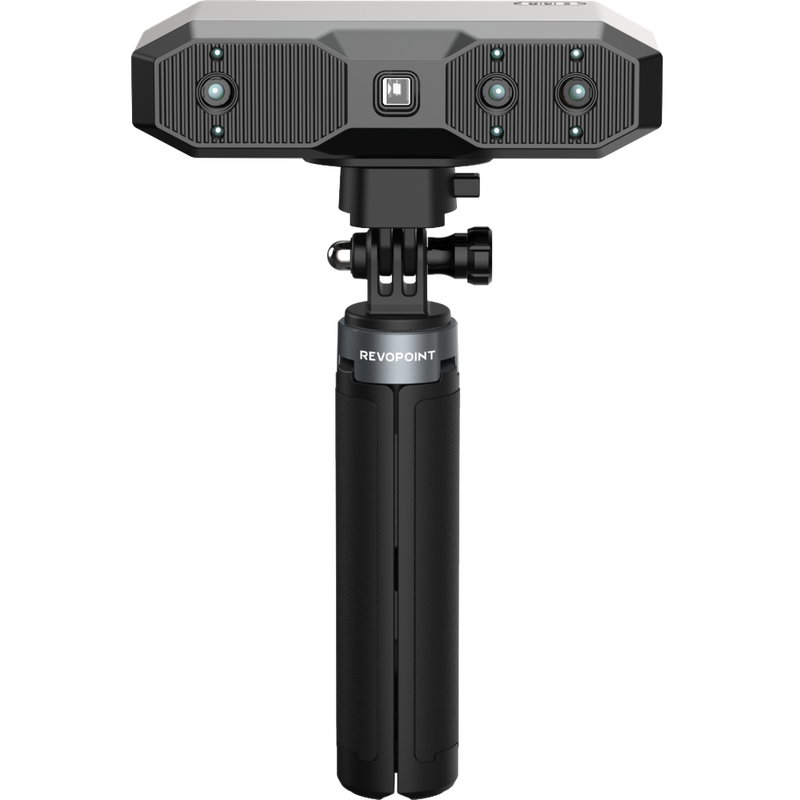

Revopoint MINI 2 Scanner 3D - Pacchetto Avanzato
Scanner 3D a luce blu industriale con precisione metrologica.
A colpo d’occhio – I tuoi vantaggi:
- Luce blu industriale: Per la massima precisione di scansione.
- Precisione fino a 0,02mm: Precisione metrologica.
- Velocità di scansione 16fps: Per una rapida acquisizione.
- IMU a 9 assi: Per ridurre gli errori di movimento.
Precisione a livello industriale
Grazie alla tecnologia a luce blu, il MINI 2 raggiunge una precisione fino a 0,02mm – ideale per meccanica di precisione, gioielleria o prototipi accurati.
Applicazioni versatili
Dall’ispezione industriale alle applicazioni mediche, fino a contenuti XR o tutela del patrimonio culturale.
Domande frequenti (FAQ)
Per quali applicazioni è adatto il MINI 2?
Per controllo qualità, design di gioielli, tecnologia medica e digitalizzazione di opere d’arte.
Come si collega lo scanner?
Tramite USB-C o wireless tramite Wi-Fi 6.
Technische Daten
Datenblatt · Herstellerangaben| Schnittstelle | Wifi6 |
|---|---|
| Gerätegröße | 132 x 53 x 36 mm |
| Gewicht | 175 g |
| Ausstattung | 9-Achsen-IMU; Weiß-Blitz-LEDs für Markierungs-Tracking und Kalibrierung; taktile Tasten für Echtzeit-Belichtungsanpassung; Gewicht 175 g; Abmessungen 132×53×36 mm. |
| Scangröße | Min. 10×10×10 mm; Einzelaufnahmebereich 168×132 mm |
| Scan-Genauigkeit | 0,02 mm Präzision / 0,05 mm Genauigkeit |
| Scan-Auflösung | bis 0,02 mm (Punktabstand) |
| Scan-Technologie | Industrielles Blaulicht |
| Scan-Verfahren | Handheld |
| Scan-Abstand | 120–250 mm |
| Bildrate | bis 16 fps |
| Ausgabeformat | OBJ,PLY,STL |
| USB-Anschluss | USB-C |
